Stalls ID Malfunctions Report
This report is used for identifying specific stalls with ID faults (usually faulty antenna).
Red - Indicates a fault in the most recently ended session.
Yellow - Indicates faults that occurred in one of the previous sessions, but not the last sessions that ended.
Green - Indicates no faults occurred.

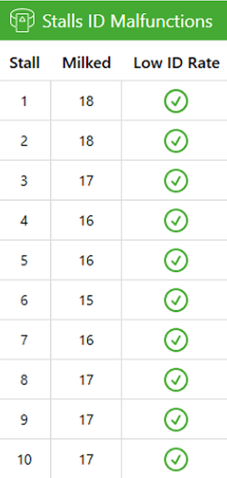

The upper table in the report details whether each stall is consistently achieving acceptable ID rates, as follows:
|
column |
Description |
|---|---|
|
Stall |
Displays the stall number; stalls with the most recent faults are listed first in the table. |
|
Milked |
Displays the number of cows milked in the stall during the milking session. |
|
Low ID Rate |
Fault symbol indicates fault symbol indicates that ID rates have dropped below 70% in the stall. There are several possible reasons for Low ID Rates:
|
Note: Faulty antennas need to be replaced; please call Afimilk support.

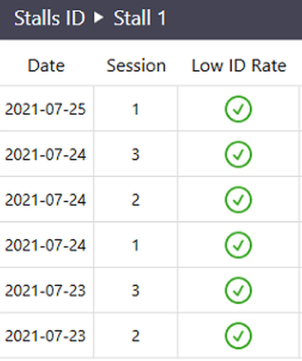

Lower detailed report: Clicking on a row in the upper table opens the detailed report for the selected milking stall, to view the persistency of the fault per session, for the last six sessions.
